High off-site disposal costs, stringent environmental discharge regulations, and corporate ESG mandates force industrial facilities to aggressively reduce wastewater volumes and conserve water. Procuring an evaporator is not a standalone purchase. Effectively separating water from contaminants requires a fully integrated architecture. Misunderstanding the required auxiliary components leads to inaccurate capacity forecasting, unexpected maintenance downtime from fouling or scaling, and unmet throughput targets. This guide deconstructs the exact components, technology variations, and engineering prerequisites required to specify a complete, production-ready Industrial Wastewater Evaporation System. You must evaluate pre-treatment modules, select the appropriate vaporization technology based on fluid chemistry, and integrate residual management for compliant liquid discharge. Proper upfront engineering ensures continuous operation, maximum volume reduction, and reliable distillate recovery.
A complete system extends beyond the boiling chamber, requiring integrated pre-treatment, vapor handling, and concentrate management modules to function reliably.
Selecting the right wastewater evaporation technology (Thermal, Vacuum, or Mechanical Vapor Recompression) depends entirely on waste stream chemistry, available utilities, and required volume reduction targets.
Material selection and automated cleaning systems are critical decision factors; failing to account for corrosive chlorides or scaling minerals will drastically shorten equipment lifespan.
Table of Contents
Specific manufacturing sectors generate complex, hard-to-treat waste streams that overwhelm standard biological or chemical treatments. Conventional membrane filtration often fails when processing dissolved heavy metals, high concentrations of salts, or emulsified organics. Facilities adopt thermal separation to isolate these contaminants efficiently. Wastewater Evaporation leaves behind a highly concentrated sludge and clean, reusable water, allowing plants to meet strict municipal discharge limits or achieve zero liquid discharge.
Metal Finishing and Plating: Facilities must manage spent plating baths, rinse waters, and high-metal streams. These fluids contain hexavalent chromium, cyanides, and corrosive chlorides. Thermal separation isolates the heavy metals, preventing toxic discharge into municipal sewer systems and reducing the volume of hazardous waste hauled off-site.
Machining and Metalworking: Plants separate water from emulsified oils, die-casting lubricants, and spent synthetic coolants. Breaking these tight chemical emulsions with standard coagulants is often impossible. Boiling the water away leaves a manageable, oil-rich concentrate that can sometimes be recycled or burned for energy recovery.
Landfill Leachate and RO Reject: Operators concentrate complex organics, heavy metals, and high-salinity reverse osmosis reject streams. These streams contain unpredictable contaminant profiles and high osmotic pressures that destroy biological treatment bacteria. Thermal processing handles this variability without biological shock or membrane fouling.
Food, Beverage, and Chemical Processing: Sites handle wash waters with massive biochemical and chemical oxygen demand. They purify this wastewater to avoid heavy municipal surcharges. The recovered distillate often returns directly to the plant utility loop for cooling tower makeup or boiler feed.

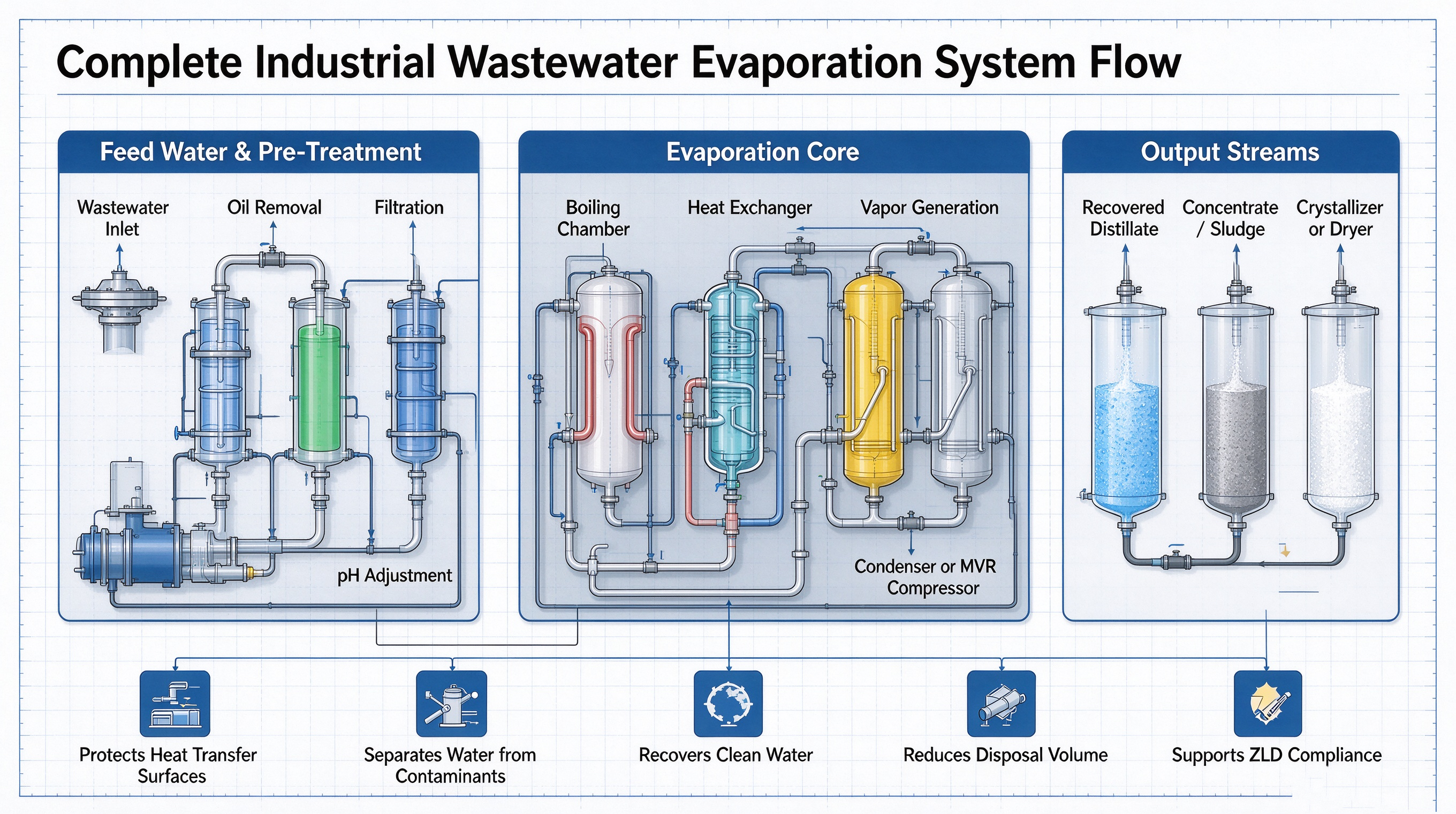

Removing free oils, suspended solids, and volatile organic compounds is mandatory before the fluid enters the boiling chamber. Raw effluent directly entering the main vessel causes severe foaming and rapid mineral scaling on heat transfer surfaces. Standard pre-treatment integrations include coalescing oil separators to remove tramp oils and bag or cartridge filtration to catch particulate matter down to 50 microns. Automated pH adjustment dosing systems are also critical. Maintaining a neutral pH prevents premature equipment degradation and stabilizes the feed chemistry for consistent boiling behavior.
The primary vessel serves as the core environment for thermal processing. Heat transfer and phase change occur inside this heavy-duty tank, physically separating water from dissolved and suspended contaminants. Structural design considerations heavily influence operational efficiency. Flat-bottom tanks work well for specific low-solids applications where the concentrate remains highly fluid. Conical-bottom tanks facilitate better sludge accumulation at the base, allowing gravity to assist in extraction. Tank geometry directly impacts how effectively operators can pump out concentrated brine without leaving dead zones where solids pack and harden.
Evaporation requires substantial thermal energy transfer to change liquid into vapor. Standard utility integrations include natural gas burners, steam coils, electric immersion heaters, or waste-heat recovery systems utilizing hot water from other plant processes. Heat exchangers play a critical role in maximizing thermal efficiency. Plate-and-frame configurations offer massive surface area in a small footprint, while shell-and-tube designs handle high-solids fluids without plugging. Proper heat exchanger selection prevents localized boiling, reduces the thermal degradation of the process fluid, and maintains high-velocity flow to prevent solids from settling on the metal.
Managing the generated steam is just as critical as boiling the liquid. Atmospheric exhaust systems vent clean water vapor directly outside, which requires less equipment but loses the water entirely. Closed-loop condensation systems recover high-purity distilled water for facility reuse. This closed-loop approach drives significant water conservation across the plant. Necessary components include mist eliminators, heavy-duty blowers, and condensers. Demister pads strip entrained liquid droplets from the vapor stream, ensuring high distillate quality and preventing cross-contamination of the recovered water.
After vaporization, facilities must handle the residual brine and salts. Heavy metals and organics concentrate into a thick, viscous slurry. This concentrated sludge requires specialized extraction mechanisms, such as progressive cavity pumps or augers, to move the thick material out of the boiling chamber. Secondary crystallization units and sludge drying beds reduce moisture further, turning the slurry into a dry cake. These downstream modules are required for true Zero Liquid Discharge compliance, ensuring the primary vessel does not choke on accumulated solids.
Modern systems rely on robust instrumentation for safe, continuous operation. Programmable Logic Controllers manage the entire thermal separation process, utilizing PID loops to maintain exact parameters. Continuous level sensors, pressure transmitters, and temperature probes monitor the boiling bath in real time. Automated anti-foam chemical feed systems inject defoamer the moment froth is detected, maintaining stable boiling conditions. Remote monitoring and automated shutdown protocols ensure safe, unattended operation, allowing operators to track system performance from a central control room and intervene before mechanical failures occur.
Direct thermal units apply heat at standard atmospheric pressure. A submerged combustion burner or electric element directly heats the liquid bath. This mechanism is highly robust for heavy sludge, viscous fluids, and applications where the feed chemistry fluctuates wildly. It remains best for facilities with abundant waste heat or low-cost natural gas. Direct thermal processing handles high solids loading without plugging delicate heat exchanger tubes. However, it is generally the most energy-intensive option available, requiring careful evaluation of utility capacity before selection.
Vacuum distillation lowers the boiling point of water significantly by operating under negative pressure using specialized liquid ring or dry vacuum pumps. This mechanism reduces the thermal energy requirements for phase change, allowing the system to boil water at temperatures as low as 50°C to 70°C. It is ideal for heat-sensitive waste streams and recovering high-purity distillate. Lower boiling temperatures also reduce the scaling potential of dissolved minerals like calcium and magnesium. Facilities prioritizing energy efficiency and water recovery often choose vacuum distillation systems.
MVR technology captures the generated vapor and compresses it using a centrifugal compressor or positive displacement blower. Compressing the vapor increases its temperature and pressure. The system then reuses this hot compressed vapor as the primary heat source to boil incoming wastewater. This mechanism represents a highly energy-efficient approach for continuous processing. It requires specific electrical infrastructure to power the heavy-duty compressors but eliminates the need for massive external steam generation. MVR systems excel in large-scale operations where continuous throughput is mandatory.
The industry shows a strong trend toward skid-mounted, modular systems. Engineers customize these architectures for diverse industrial applications, assembling the pumps, vessels, and controls onto a single steel frame. Evaluate modularity if you anticipate phased production increases or shifting waste stream profiles. Skid-mounted units solve strict footprint and layout constraints, allowing facilities to integrate additional modules as capacity expands. Pre-wired and pre-piped skids undergo Factory Acceptance Testing before shipment, drastically reducing on-site installation time and minimizing disruption to ongoing plant operations.
Technology Type | Operating Pressure | Best Application Profile | Primary Energy Source |
|---|---|---|---|
Direct Thermal | Atmospheric | Heavy sludge, high solids, viscous fluids | Natural gas, electric, waste heat |
Vacuum Distillation | Negative (Vacuum) | Heat-sensitive streams, high-purity recovery | Steam, hot water, electric |
Mechanical Vapor Recompression | Variable | High-volume continuous processing | Electrical (Compressor) |
A complete chemical analysis dictates the entire system design. You must measure total dissolved solids, total suspended solids, pH, specific gravity, and boiling point elevation. Varying concentrations of salts, metals, and organics change boiling dynamics entirely. High chloride levels require exotic alloys to prevent rapid pitting and stress corrosion cracking. High organic loads necessitate specific anti-foaming strategies and defoamer dosing. Dissolved salts cause boiling point elevation, meaning the liquid requires higher temperatures to vaporize as it concentrates. Never size a system based on estimated water volumes alone; the chemistry dictates the thermodynamics.
Calculating required evaporation rates requires precise facility production data. Measure gallons per hour based on peak facility output, then compare this peak against the average daily output. Always build sizing buffers into your engineering calculations. These buffers account for routine maintenance downtime, clean-in-place cycles, and unexpected production surges. They also provide headroom for future capacity expansion. Undersized units create severe bottlenecks during peak production shifts, forcing plants to haul wastewater off-site. Oversized units suffer from inefficient batch processing cycles and excessive energy draw.
Evaluate your existing facility utilities before selecting a technology. Assess boiler capacity, electrical grid limits, and natural gas availability. Available utilities directly dictate which thermal system is viable. Insufficient electrical infrastructure will eliminate MVR as an option, as the compressors require significant amperage. Lack of steam access forces reliance on direct gas heating or electric immersion. You must also evaluate cooling water availability for condensation systems. Proper utility integration ensures the system runs at nameplate capacity without starving other plant processes of necessary power or heat.
Mandate bench-scale treatability testing with shortlisted vendors to validate boiling behaviors, foaming potential, and material compatibility.
Audit your facility's utility infrastructure to confirm adequate electrical, steam, or natural gas capacity for the selected technology.
Execute pilot programs to verify actual volume reduction rates and distillate purity before committing to a full-scale build.
Establish a comprehensive maintenance schedule detailing automated cleaning cycles, acid washes, and sludge extraction protocols.
A: Evaporators reduce wastewater volume by boiling off water, leaving a concentrated liquid brine or heavy slurry. Crystallizers take that concentrated brine and remove the remaining moisture entirely. This forces the dissolved salts to precipitate into dry, solid crystals suitable for standard landfill disposal.
A: Foaming occurs due to high organic loads, surfactants, or rapid boiling in the water. You prevent it by integrating automated anti-foam chemical dosing systems that inject defoamer when sensors detect froth. Pre-treating the water to remove free oils and organics also significantly reduces foaming potential.
A: Yes. If you utilize a closed-loop condensation system, the evaporated vapor condenses back into liquid. This recovered distillate is typically high-purity water. Facilities reuse it for cooling tower makeup, boiler feed, or general rinsing applications, drastically reducing municipal water intake.
A: The residual sludge contains concentrated metals, salts, and organics. Automated progressive cavity pumps extract this slurry from the boiling chamber. Facilities then process it through a filter press, sludge dryer, or crystallizer to remove residual moisture. The final solid waste is hauled away for compliant disposal.
A: Pre-treatment removes free oils, large suspended solids, and volatile organics. If these enter the boiling chamber, they cause severe foaming, rapid mineral scaling on heat exchangers, and foul odors. Proper feed conditioning protects the internal components and extends the equipment's operational lifespan.
A: MVR captures the steam generated during boiling and compresses it using a mechanical blower. Compressing the vapor increases its temperature and pressure. The system then routes this hot vapor back to the heat exchanger to boil new incoming wastewater, recycling the latent heat continuously.
