LOW-TEMPERATURE VACUUM SCRAPE DRYER FOR ZLD

Salted wastewater usually contains a large amount of high boiling point organic matter, which cannot evaporate with water vapor during the evaporation process, nor can it enter the solid salt that crystallizes after concentration. Therefore, these organic compounds remain in the mother liquor and gradually increase during the enrichment process, affecting the evaporation of the system and causing a decrease in the quality of the obtained salt. Therefore, it needs to be discharged irregularly. The treatment of discharged mother liquor uses a mother liquor drying system to form solid impurities, ultimately achieving zero discharge of wastewater(ZLD).

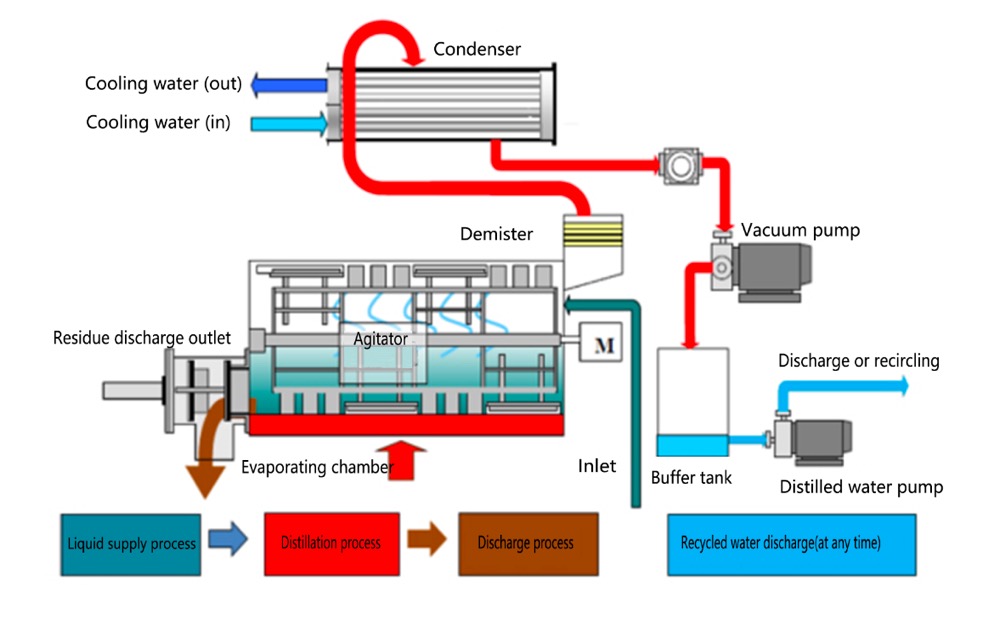

Working Principle of Vacuum Scrape Dryer

  • Evaporating temperature: 45-55℃
  • Pressure: -80~ -90kpa
  • Heating medium: Live steam/Electricity/Refrigerant(R407C/134a)
  • Output moisture: 5-40%
  • Application: Mother liquor from evaporation plant/High salt/High COD liquids

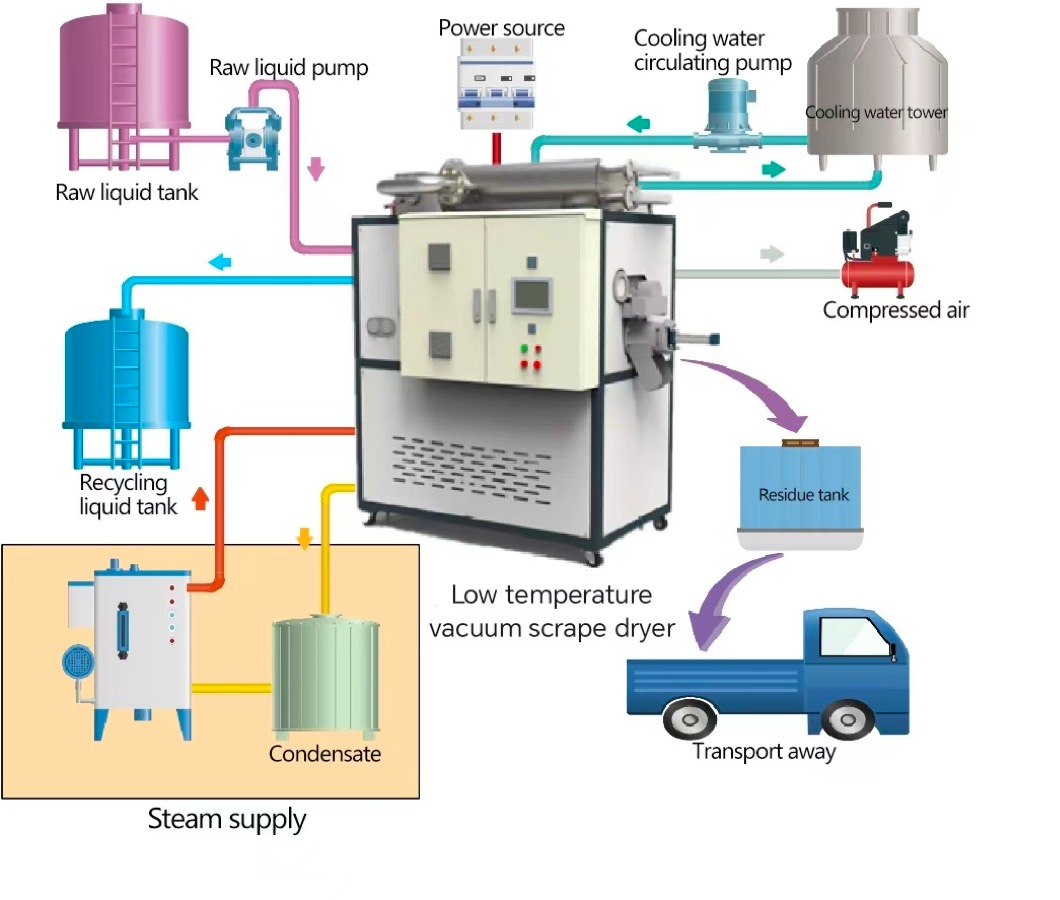

Heating Medium: Live Steam

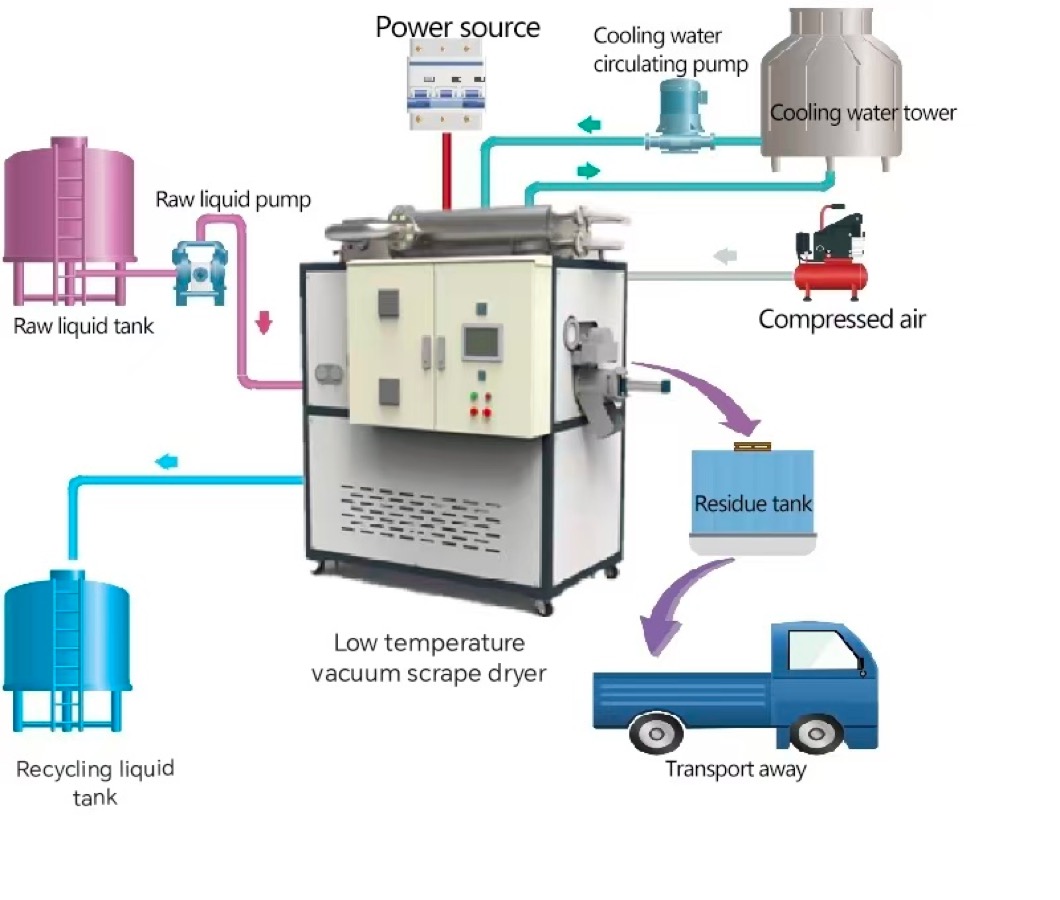

Heating Medium:Electricity

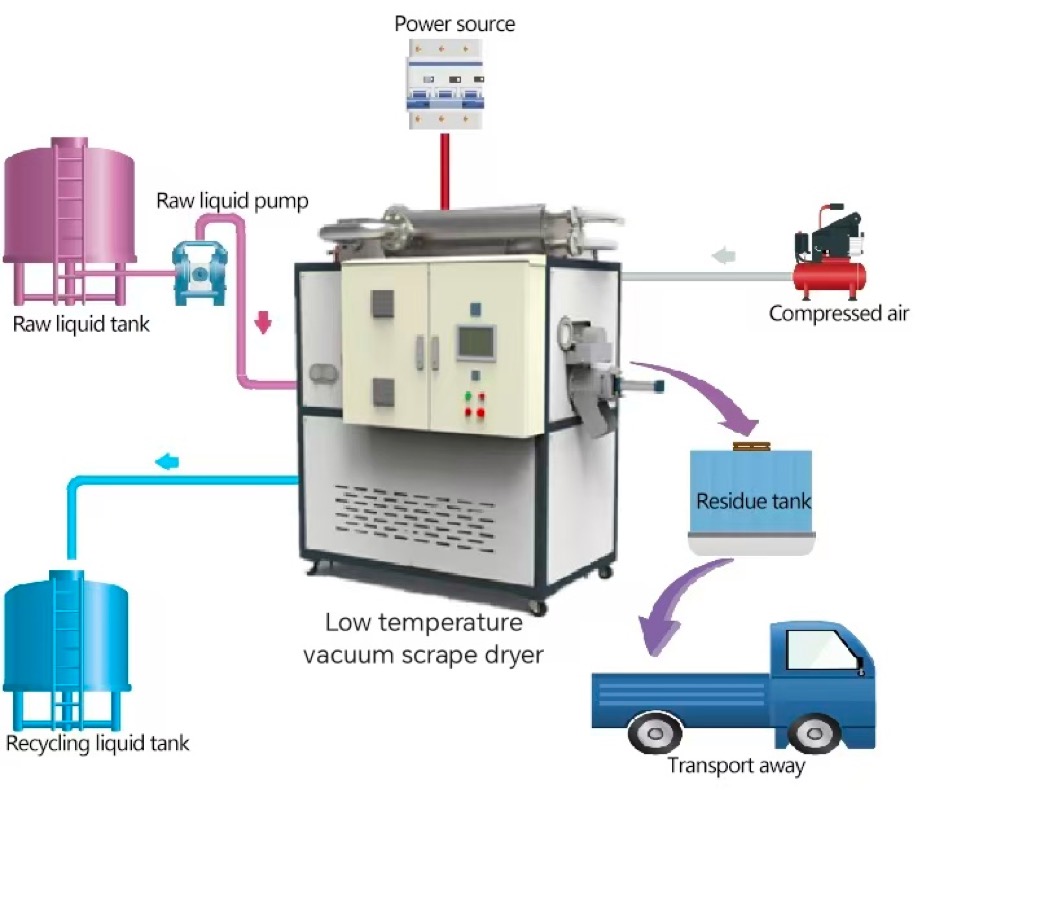

Heating Medium: Heat Pump Compressor

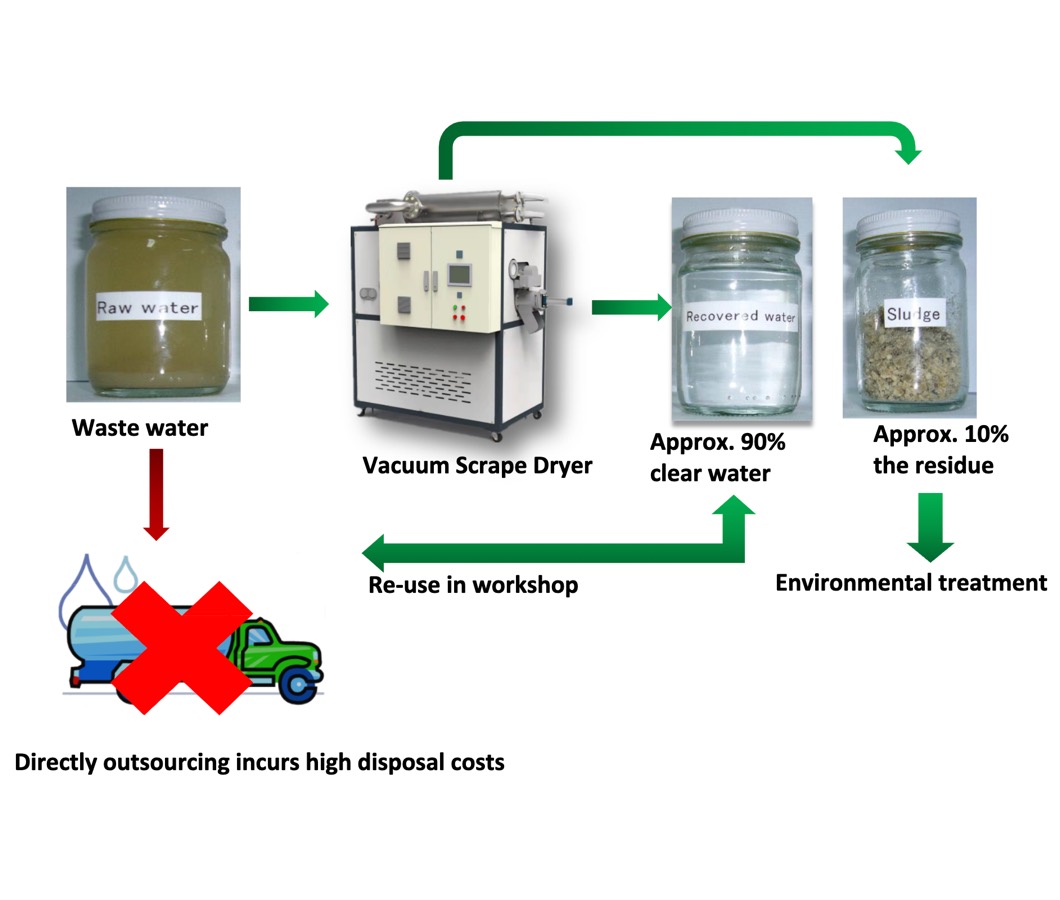

Zero Liquid Discharge(Vacuum Evaporation ---Drying)

Mother-liquid Scraper Evaporator

The vacuum low-temperature water separation equipment belongs to a scraper type thin film evaporator. This equipment has high heat transfer coefficient, high evaporation intensity, short flow time, and large operating flexibility. It is suitable for evaporation concentration, degassing, desolvation, and distillation purification of heat sensitive materials, high viscosity materials, and easily crystallized materials containing particles.
