Recovery of Waste Acid from Titanium Dioxide

 More than 90% of domestic titanium dioxide pigment is produced by the sulfate process. For each ton of product, 5-8 tons of high-concentration waste acid at 20%-13%, 20-30 tons of medium- and low-concentration waste acid at 1%-2%, 15-25 tons of dilute acidic wastewater at 0.2%-0.3%, and 2-3 tons of mixed acid-selenium wastewater at 4%-6% are generated.
 A 100,000-ton-per-year production line generates more than 1.5 million tons of waste acid annually.
 The waste acid contains ferrous sulfate, ultrafine titanium dioxide particles, silica gel, heavy metal ions such as aluminum/manganese/vanadium/chromium, and small amounts of chloride and fluoride ions. It has a complex composition, strong corrosiveness, high salt content, abundant colloids and large water-quality fluctuations, making treatment extremely difficult.

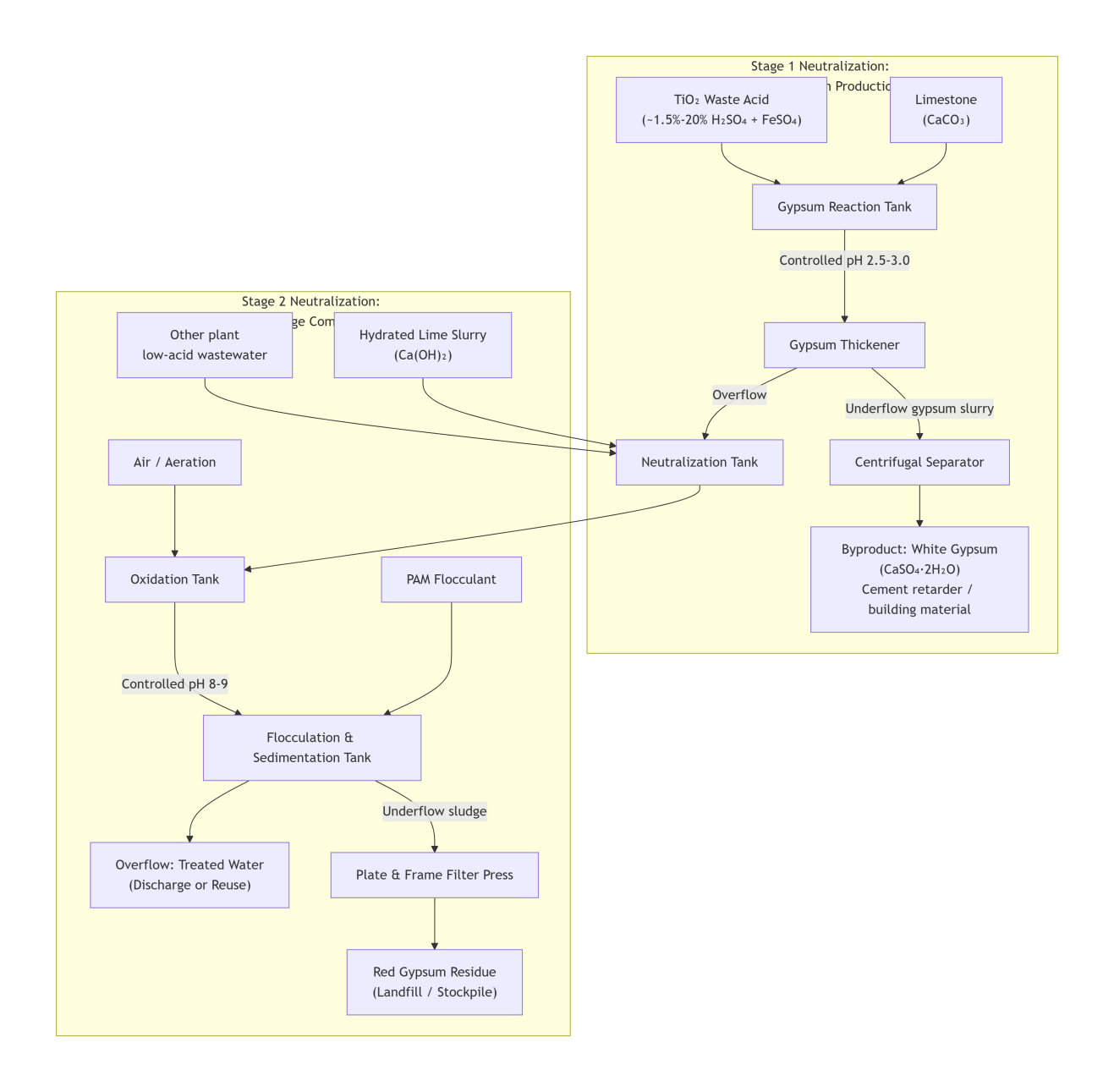

 More than 60% of small and medium-sized titanium dioxide companies use lime or carbide slag to neutralize waste acid. Although this can reduce acidity, each ton of titanium dioxide pigment generates 5-5.4 tons of titanium gypsum.
 China adds more than 10 million tons of titanium gypsum each year, with a resource-utilization rate of less than 15%. Most of it is stockpiled in the open air, which can cause soil acidification and heavy-metal exceedances in groundwater.
 Sulfuric acid is wasted through neutralization, forcing companies to purchase additional fresh acid and significantly increasing costs.

 MVR high-temperature concentration has high energy consumption (>220 kWh per ton of water). Metal salts crystallize and adhere to heat-exchange tubes, requiring acid cleaning after less than 100 days of operation. Strong acids and halide ions corrode equipment, and investment in high-grade corrosion-resistant materials is too costly for many small and medium-sized companies.
 Conventional nanofiltration/reverse-osmosis membranes cannot withstand strong-acid environments. They are easily clogged by iron-salt colloids and ultrafine titanium dioxide powder, and their sulfuric-acid concentration limit is only 13%, which does not meet reuse requirements and therefore requires combination with MVR.
 Membrane service life is only 1-1.5 years, requiring frequent replacement and resulting in high operating costs. Water-quality fluctuations also cause frequent system starts and stops, making continuous and stable production difficult to ensure.

 Sulfuric acid, ferrous sulfate and ultrafine titanium dioxide particles coexist, making it difficult for freeze crystallization or chemical extraction to achieve both iron removal and acid retention.
 If iron removal is incomplete, the recovered acid has insufficient purity. If deep iron removal is pursued, sulfuric acid is consumed and new hazardous waste may be generated.
 "Acid extraction inevitably carries iron, while iron removal inevitably consumes acid" is a widely recognized industry challenge. It lowers the value of resource recovery and weakens companies' motivation to invest in technical upgrades.

 It contains large quantities of nanoscale titanium oxide particles and silica-gel colloids. With high viscosity, it easily clogs laboratory equipment, heat exchangers and pipelines; this type of gel-like contamination is rare in other industries.
 The acidity span is wide (0.2%-23%), and water quality fluctuates without clear patterns. Conventional equipment struggles to adapt, causing risks such as stream mixing, material collapse or effluent non-compliance.
 Strong acid, high salinity and multiple heavy metals coexist, causing severe equipment corrosion at both low and high temperatures. The failure rate is far higher than that of ordinary pickling wastewater.

 The stockpiling of tens of millions of tons of titanium gypsum faces environmental-inspection risks and may lead to production restrictions, rectification orders or fines.
 Treating waste acid as waste leads to tens of millions in annual sulfuric-acid procurement costs, compressing profit margins.
 Companies in key river basins, such as Taihu Lake and the Dongjiang River, may be ordered to suspend production if wastewater exceeds discharge standards.
 Frequent equipment damage disrupts normal production and causes high indirect losses.

 A proprietary cross-linked and modified polymer base material is used, allowing long-term operation in strong-acid environments at pH<1.
 The membrane-pore structure is optimized for iron-salt colloids and ultrafine titanium dioxide powder. Its corrosion resistance and anti-clogging performance far exceed those of conventional membranes, and its service life exceeds three years.
 Membrane modules are applied in stages: front-end precision filtration recovers 96% of ultrafine titanium dioxide; mid-stage nanofiltration accurately retains ferrous, aluminum, manganese and other heavy metals, with an impurity-removal rate above 95%, preventing clogging at the source.

 The system abandons traditional high-temperature phase-change concentration and adopts non-phase-change electrochemical low-temperature concentration, proprietary acid-resistant modified membranes, staged modular pretreatment and an APC intelligent automatic-control system.
 Together, these four modules enable high-purity recovery of all components and zero solid-waste discharge throughout the process.

 The equipment frame is coated with heavy-duty anti-corrosion polyurethane and equipped with quick-release anti-corrosion end covers, making maintenance easy and eliminating leakage risks.
 Acid-resistant special high-pressure pumps are used to solve cavitation and sealing problems under strong-acid conditions.
 Pretreatment includes precision filtration, heavy-metal adsorption and trace-halogen removal. High- and low-concentration waste acids are treated through separate routes, allowing the system to adapt to major water-quality fluctuations and ensuring long-term stable operation.

 Upgraded on the basis of DCS, the system is equipped with proprietary online special sensors to monitor sulfuric-acid concentration, ferrous content, conductivity and heavy-metal indicators in real time.
 Advanced APC algorithms dynamically adjust parameters such as electric-field power and membrane pressure, enabling unattended operation and automatic adaptation to water-quality changes.
 The system breaks through the traditional process bottleneck of only eight months of operation; multiple projects have already operated continuously and stably for more than four years.

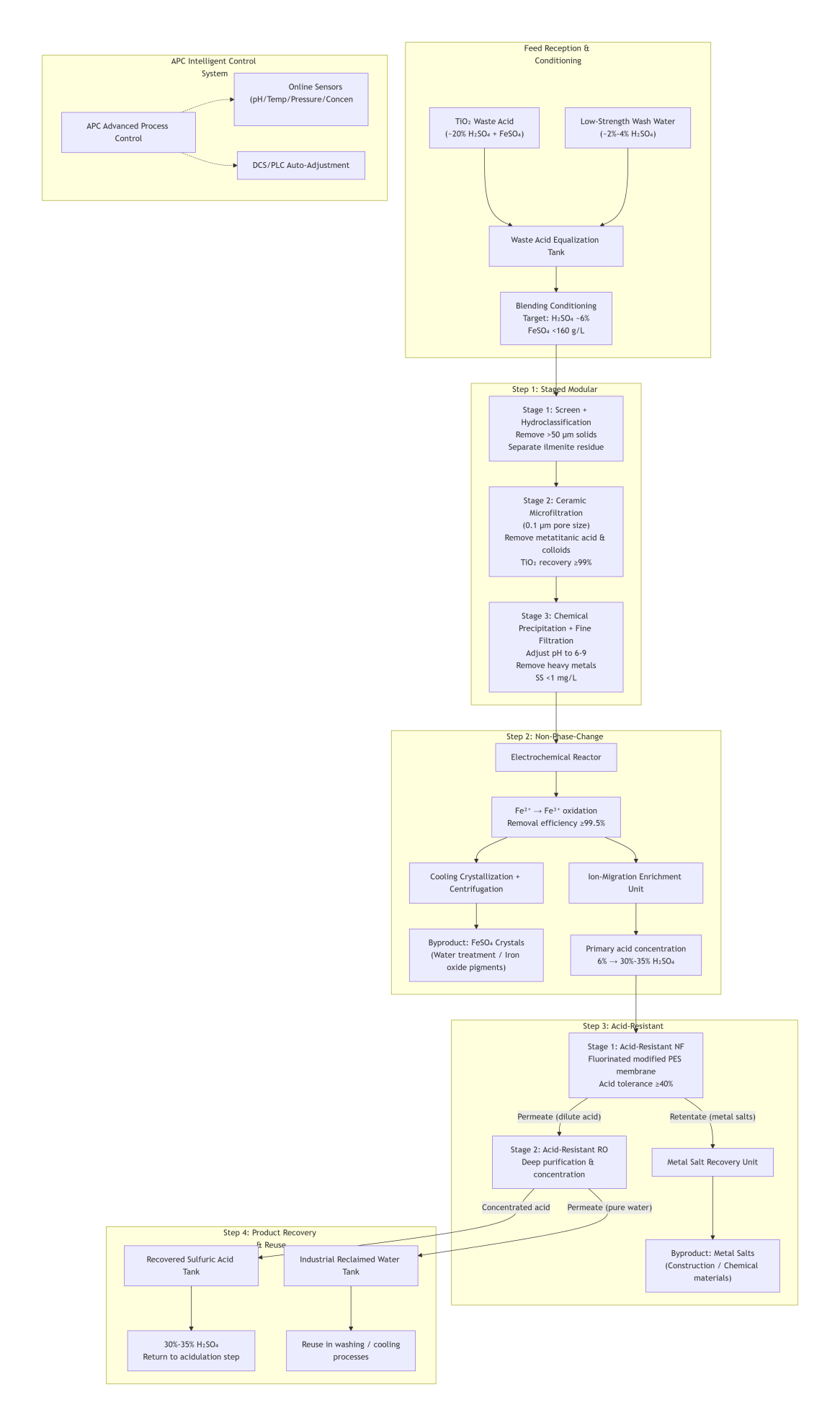

 Process: homogenization and blending -> multi-stage pretreatment (titanium dioxide powder recovery) -> staged impurity and heavy-metal removal using modified membranes -> electrochemical low-temperature concentration (reusable acid + ferrous iron) -> MVR-assisted precision crystallization control.
 Outputs: high-purity reusable sulfuric acid, industrial-grade ferrous sulfate and ultrapure water.
 The whole process uses no lime neutralization, produces no titanium gypsum solid waste, achieves near-zero wastewater discharge, and converts all products into reusable resources.

Specific Benefits for a 100,000-Ton-per-Year Production Line
 Annual reduction of more than 500,000 tons of titanium gypsum solid waste, eliminating stockpiling and leachate-pollution risks.
 Annual reduction of 1.485 million tons of acidic wastewater discharge, meeting ultra-low discharge requirements in chemical industrial parks and river-basin control requirements.
 Annual recovery of about 4,000 tons of titanium dioxide powder, which can be reused directly to save raw-material costs.
 Overall acid recovery rate >90%, with annual production of about 180,000 tons of 30% reusable sulfuric acid, substantially reducing fresh-acid purchases.
 Annual production of 32,000 tons of high-purity industrial-grade ferrous sulfate, which can be sold externally to generate revenue.
 Annual production of more than 1.2 million tons of ultrapure water for reuse in production, reducing tap-water consumption and water-treatment costs.
 Revenue from raw-material reuse and by-product sales can basically cover system operation and maintenance costs, enabling the environmental-protection project to be profitable on its own.

Policy and Market Opportunities
 As policies such as the "dual-carbon" goals, ultra-low chemical-industry emissions, restrictions on solid-waste stockpiling and zero discharge in key river basins become stricter, traditional high-energy neutralization processes are being gradually phased out.
 Waste-acid resource recovery has become a compliance necessity for companies, rather than an optional measure.
 With large fluctuations in sulfuric-acid prices and rising solid-waste treatment fees, resource recovery can save tens of millions each year and has become a key lever for cost reduction and efficiency improvement.

 The technology can be upgraded to recover rare metals such as scandium and vanadium from waste acid, and further produce battery-grade raw materials or high-end pigments.
 The process can be quickly replicated in phosphoric-acid production, metallurgical pickling, fine chemicals and other fields, showing strong cross-industry adaptability.
