What is the difference between single effect and double effect evaporators?

Why waste energy when you can reuse it? Evaporators do more than just boil liquid—they power industry.Used in food, pharma, and wastewater treatment, evaporators are essential to concentration processes.But not all evaporators are equal. Some waste steam, others save it. In this post, you’ll learn how single and double effect evaporators differ, and why energy efficiency matters.

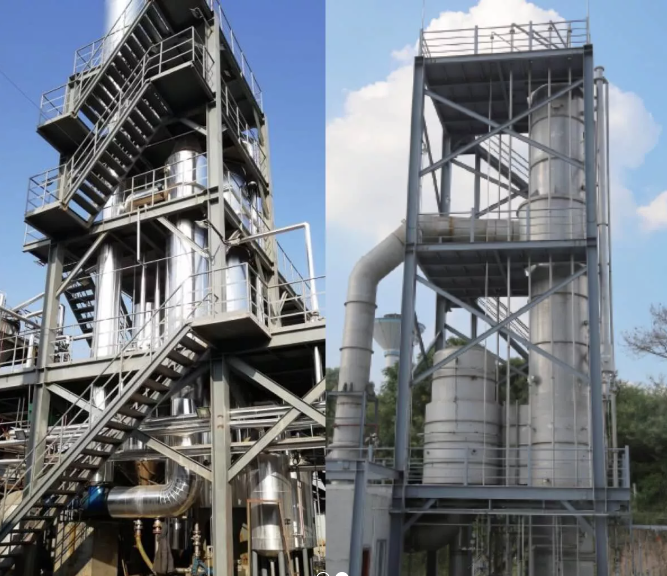

Overview of Single Effect Evaporators

What Is a Single Effect Evaporator?

A single effect evaporator is a basic system used to concentrate liquids by removing water or solvents through boiling. It works in just one stage. Steam heats the liquid inside the evaporator, and as the temperature rises, vapor forms and gets removed. That vapor is then condensed and discarded. The process is simple—there’s no reuse of the heat or vapor generated, which makes it less energy-efficient compared to multi-stage systems. But this straightforward design makes it easier to install, operate, and maintain, especially in small-scale setups.

What Are the Main Components?

This type of evaporator typically includes a heat exchanger, an evaporation chamber, a vapor condenser, and a feed-discharge system. The heat exchanger uses steam to transfer thermal energy into the liquid. Inside the evaporation chamber, the liquid boils and produces vapor. The condenser cools that vapor back into liquid, which is usually separated as a byproduct. Finally, the feed system controls the incoming liquid and the outlet discharges the concentrated product. Here’s a quick breakdown of the core components and their functions:

These parts work together in a closed loop. The steam heats the liquid, vapor forms and escapes, and the system repeats as long as feed is supplied.

What Are the Advantages and Disadvantages?

Overview of Double Effect Evaporators

What Is a Double Effect Evaporator?

A double effect evaporator is a two-stage system that reuses vapor from the first effect to heat the second, reducing the need for additional steam and improving energy efficiency. Unlike single effect systems, which discard vapor after one use, this setup makes smarter use of energy by allowing the same heat to do twice the work in two connected chambers operating at different pressures.

How the Multi-Stage Design Reuses Energy

Each stage in a double effect evaporator runs at a progressively lower pressure, which means the boiling point drops as the liquid moves through the system. This allows the vapor generated in the first effect to still have enough energy to boil the liquid in the second effect.

Here’s what the process looks like:

Pros and Cons of Using a Double Effect System

Key Differences Between Single Effect and Double Effect Evaporators

Energy Consumption and Efficiency Comparison

Single effect evaporators use steam once and discard it, so you need around 1 kg of steam to evaporate 1 kg of water. That works but wastes energy. Double effect systems reuse vapor from the first stage to heat the second, so you get almost 2 kg of water evaporated with the same 1 kg of steam. This saves energy and lowers operational costs.

Steam Economy and Heat Recovery

Steam economy tells us how much water we can evaporate per kg of steam. Single effect systems don’t reuse heat, so their steam economy is low. Double effect systems capture and reuse vapor heat, boosting steam economy and cutting down cooling water needs.

Equipment Complexity and Cost

Single effect evaporators are simple—one vessel, fewer controls, lower cost. Double effect evaporators use two vessels and operate at different pressures, which makes them more complex and more expensive to install.

Suitability for Different Process Scales and Throughputs

Single effect evaporators suit small batches or pilot testing, especially where energy isn’t a big concern. Double effect systems are better for large, continuous processes that need better energy use.

Maintenance, Operation, and Control Systems

Single effect systems are easier to run and maintain, with fewer instruments and controls. Double effect units need more attention, monitoring pressure between effects and managing extra components, but the energy savings often justify the effort.

MVR Evaporation: The Next Step in Efficiency

What Is MVR Evaporation?

MVR stands for Mechanical Vapor Recompression. It's a process that takes the vapor produced during evaporation and compresses it using a mechanical device—usually a fan or compressor. Once compressed, that vapor becomes hotter and can be reused as the heat source for the same evaporator. So instead of constantly using new steam, MVR systems recycle the vapor they generate. It’s like giving each unit of steam a second life, which is a huge step up from both single and double effect systems.

How MVR Enhances Steam Economy Beyond Double Effect

In a double effect evaporator, you use one kilogram of steam to evaporate around two kilograms of water. MVR goes further. Because it keeps reusing the same vapor through mechanical recompression, you can cut down fresh steam demand by over 90%. That means in some cases, MVR can achieve a steam economy of 10 or higher, compared to 2.0 in double effect systems. This huge boost in efficiency also brings down cooling water needs and eliminates most of the waste heat.

Benefits of Combining MVR with Double-Effect Systems

Pairing MVR with a double effect evaporator takes the best of both worlds. You get multi-stage heat recovery plus mechanical vapor recycling. This setup lowers the need for fresh steam and reduces total energy input. It also helps stabilize heat distribution between effects, especially when feed conditions fluctuate. Engineers often choose this combo for high-capacity, energy-sensitive operations like milk powder production, brine concentration, or chemical solvent recovery.

Let’s look at some combined system perks:

• Lower total operating cost over time

• Fewer emissions from steam generation

• Improved energy balance between stages

• High throughput without high fuel demand

• Reduced size of auxiliary equipment (boilers, condensers)

How to Choose the Right Multi-Effect Evaporator for Your Industry

ZheJiang VNOR Environmental Protection Technology Co., Ltd (Stock code: 872205) focuses on the development, production, and sales of all types of evaporation and crystallization projects using MVR evaporators，multi-effect evaporators and heat pump evaporators which are extensively used in the waste water treatment, Pharmaceutical, and chemical industries.

Conclusion

Single effect evaporators are simple and affordable but use more steam. Double effect systems save energy by reusing vapor between stages. Choose single effect for small jobs or where steam is cheap. Use double effect for higher volume and better efficiency. MVR combined with double effect gives low energy use and high performance. It’s the future for industries aiming to cut costs and emissions.

FAQ

Q: Is double effect always better than single effect?

A: Not always. Double effect saves energy, but single effect is better for small batches, dirty vapor, or low-cost steam.

Q: Can I upgrade a single effect to a double or multi-effect system?

A: Yes, but it requires more space, piping, control systems, and investment in additional stages.

Q: What’s the lifespan of these systems?

A: Both systems can last over 15–20 years with regular maintenance, depending on usage and feed materials.

Q: How do operating costs compare in the long term?

A: Double effect costs more upfront but saves more energy, so it’s cheaper over time for high-volume processes.
