In today's industrial world, efficiency, sustainability, and resource recovery have become key factors in process engineering. One of the most efficient and energy-saving technologies in this field is MVR Evaporation & Crystallization. This method has revolutionized how industries handle liquid concentration and solid separation, offering a more environmentally friendly and cost-effective approach to processing.
MVR stands for Mechanical Vapor Recompression, a thermal separation process that significantly reduces energy consumption by reusing its own vapor as a heat source. When paired with crystallization, the system enables both concentration of liquid solutions and extraction of high-purity solid crystals. From wastewater treatment to lithium recovery, this technology is widely applied across various industries.
This article explores what MVR Evaporation & Crystallization is, how it works, and why it has become an essential solution for modern industrial applications.
MVR Evaporation & Crystallization is an integrated system designed to evaporate water or solvents from industrial solutions and recover useful solid materials through crystallization. The core advantage of this system lies in its ability to significantly reduce energy use by mechanically compressing and reusing vapor that would otherwise be wasted.
The evaporation process focuses on removing the liquid component, while the crystallization phase allows for the recovery of target materials in solid form. By combining these two steps into one continuous system, manufacturers can achieve higher efficiency, lower operational costs, and environmentally friendly production.
The process starts by heating the feed solution until part of it vaporizes. Normally, evaporated vapor is discarded or condensed using external cooling, requiring large amounts of energy. In an MVR system, however, the vapor is compressed mechanically, increasing its temperature and pressure. This compressed vapor is then redirected back into the system to serve as the new heat source for further evaporation.
The key component of this system is the mechanical vapor compressor, often a Roots blower or centrifugal compressor. It captures the vapor, compresses it, and reintroduces it to the heat exchanger. This process dramatically cuts down on external steam requirements and energy usage.
As the system continues to recycle its own vapor, it operates in a closed-loop mode, making it ideal for continuous industrial processes.
After evaporation has concentrated the solution, the next step is crystallization. This occurs when the solution becomes supersaturated, meaning it contains more dissolved solids than it can hold at a given temperature. As a result, the excess solids begin to form crystals.
The system carefully controls parameters such as temperature and concentration to ensure consistent and high-purity crystal formation. These crystals are then separated from the remaining liquid using filters or centrifuges. The result is a solid product that can be sold or reused, and a clean liquid that can either be discharged or reprocessed.

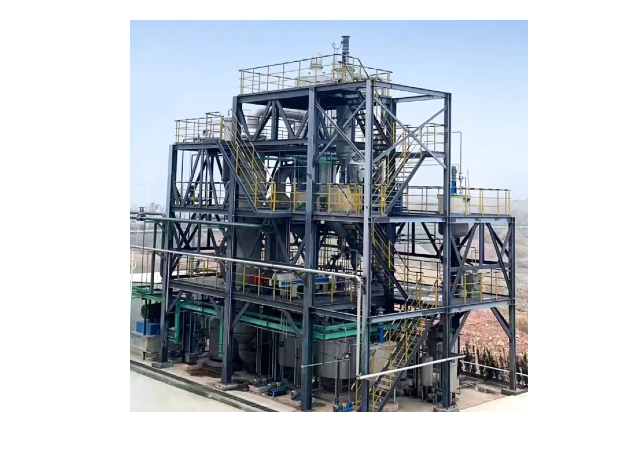

An MVR Evaporation & Crystallization unit typically includes:
Evaporator body: where the initial heating and evaporation takes place
Mechanical vapor compressor: compresses the vapor to raise its energy level
Heat exchanger: reuses the compressed vapor to heat incoming liquid
Crystallizer: enables controlled crystal formation
Condensers: collect and cool residual vapor

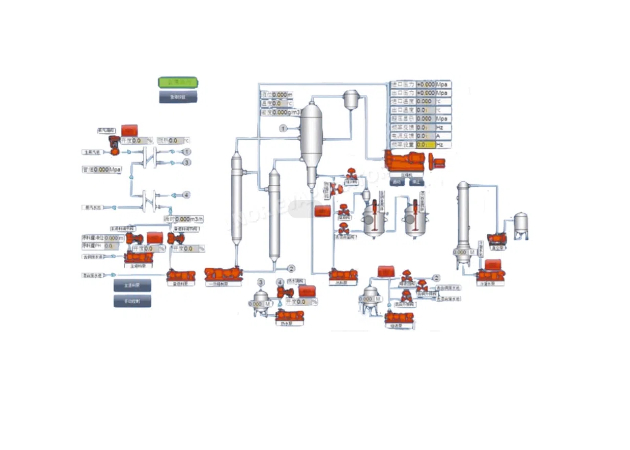

Control system: maintains temperature, pressure, and feed rates
Each component works in harmony to ensure the system runs efficiently, reliably, and continuously.
One of the biggest benefits of this technology is energy efficiency. Traditional evaporators often rely on multi-effect designs or extensive steam usage. MVR systems, by contrast, can reduce energy consumption by up to 90%, making them extremely cost-effective in the long run.
Another advantage is environmental sustainability. With reduced steam usage and closed-loop operation, MVR systems contribute to carbon footprint reduction and help companies meet strict environmental regulations.
The compact size and modular design of modern MVR systems also make them suitable for retrofitting existing facilities. Automated control features mean that these systems require minimal supervision, reducing labor costs and human error.
Finally, the ability to recover valuable solids through crystallization increases product yield and minimizes waste, further improving the return on investment.
This technology is used in a wide range of industries due to its versatility and efficiency.
In the chemical industry, MVR systems are used to concentrate acids, bases, and salt solutions. The systems can handle corrosive materials and provide reliable performance even in aggressive conditions.
In the pharmaceutical sector, they help recover active ingredients and intermediates with high purity, ensuring product safety and compliance with industry standards.
Food and beverage companies use MVR evaporation to concentrate products such as fruit juice, milk, and sugar syrup while preserving taste and nutritional value due to the system’s low-temperature operation.
One of the fastest-growing applications is in wastewater treatment. Especially in sectors like textiles, coal chemical, and electroplating, MVR Evaporation & Crystallization enables zero liquid discharge (ZLD) by recovering water and extracting salts or heavy metals.
Another emerging field is battery material recycling, where the technology is used to recover lithium, cobalt, and nickel compounds with high efficiency and minimal energy usage.
When selecting an MVR Evaporation & Crystallization system, businesses should consider several factors:
Composition of the feed solution
Desired product quality (concentrate vs. crystals)
Daily processing capacity
Energy availability (electricity vs. steam)
Environmental regulations and discharge limits
Maintenance and operational support
Each of these parameters affects system design and cost. Working with an experienced supplier is crucial to finding the best fit for your needs.
If you're seeking a reliable partner for MVR Evaporation & Crystallization systems, VNOR is a trusted name in the industry. With years of experience and a proven track record, VNOR offers complete solutions tailored to the unique requirements of each customer.
From system design and installation to after-sales service, VNOR provides end-to-end support that ensures smooth operation and long-term value. Their equipment is built with high-quality materials and advanced automation, guaranteeing stable performance even in demanding industrial environments.
For industries ranging from chemicals to energy, VNOR’s solutions have helped improve efficiency, reduce costs, and meet strict environmental compliance standards.
To learn more about how VNOR can help optimize your production process, visit www.vnor-evaporator.com today.
As industrial processes continue to demand better efficiency and environmental responsibility, MVR Evaporation & Crystallization offers a powerful and sustainable solution. Its ability to reduce energy usage, recover valuable products, and ensure regulatory compliance makes it an essential technology for modern production facilities.
Whether you're in chemical manufacturing, pharmaceuticals, food processing, or wastewater treatment, integrating MVR technology into your operations can unlock new levels of performance and profitability.
