MVR evaporators cut energy use dramatically and recycle vapor to save heat. This article explains key design essentials, helping you boost efficiency and reduce costs. You will understand how MVR supports sustainability while maintaining high product quality.

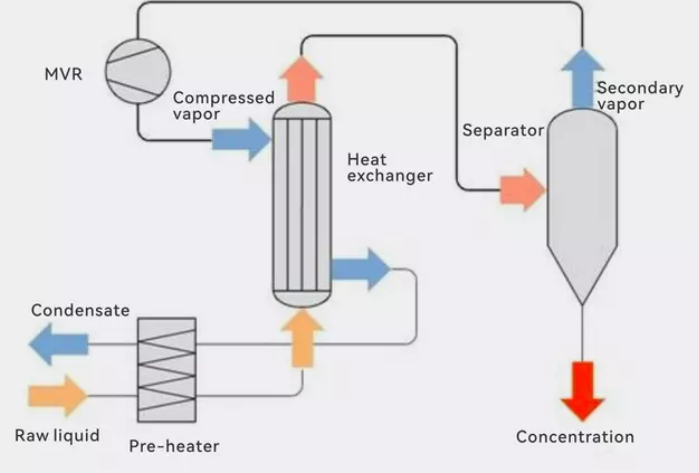

MVR technology works by mechanically compressing vapor generated during evaporation and reusing it as a heat source. This closed-loop process reduces the need for external steam, which can cut energy consumption by up to 90% compared to traditional single-effect evaporators. The gentle temperature rise ensures that sensitive products, such as juices or dairy, maintain their color, flavor, and nutrient content. By leveraging latent heat effectively, MVR systems combine energy savings with product quality preservation.
An MVR evaporator relies on four main components:
● Compressor – Various types exist, such as centrifugal, roots, and magnetic levitation compressors. Each affects energy use and reliability differently.
● Heat Exchanger – Transfers thermal energy efficiently from compressed vapor to the incoming liquid.
● Evaporator Chamber – Where liquid transforms into vapor, initiating the recycling process.
● Condenser – Captures residual heat to preheat incoming streams, further reducing energy input.
Selecting high-quality components is essential for achieving both efficiency and long-term reliability.
The heart of MVR energy efficiency lies in minimizing external heat input. By recycling nearly all the vapor generated, energy consumption can be reduced significantly. A well-designed compressor and optimized heat exchangers ensure minimal heat loss. Closed-loop configurations reduce the need for steam, lowering operational costs and environmental impact.
Automation and monitoring are integral to consistent performance. PLC or SCADA systems allow real-time tracking of temperature, pressure, and flow, reducing the likelihood of errors. Preventive maintenance schedules, along with corrosion-resistant materials, minimize downtime and extend equipment lifespan. System reliability improves ROI and enhances the sustainability of operations.
Designing an MVR evaporator requires aligning system capacity with production demands. Oversized units waste energy, while undersized units limit throughput. Balancing evaporation rate with energy efficiency is crucial. System modeling can help determine optimal performance under varying load conditions.
MVR systems must handle heat-sensitive or viscous materials carefully. Low-temperature operation preserves flavors, nutrients, and textures in food and beverages. Similarly, chemical products benefit from controlled heat to prevent degradation. Understanding product behavior ensures both efficiency and quality.
Materials such as stainless steel, titanium, or specialized alloys prevent corrosion and scaling. Acidic or high-solids solutions require more resistant materials. Choosing the right metal enhances longevity, reduces maintenance frequency, and maintains consistent heat transfer efficiency.
MVR evaporators are often more compact than multi-effect or TVR systems. Compact designs allow installation in limited spaces without compromising performance. Efficient layout planning ensures easy access for maintenance and service.
New MVR systems must align with upstream and downstream operations. Proper integration minimizes downtime during installation. Compatibility with existing pumps, piping, and control systems ensures smooth commissioning.
Compressor choice significantly impacts energy efficiency and operating costs. Centrifugal compressors offer continuous flow and moderate efficiency. Roots compressors are suitable for medium-scale applications. Magnetic levitation compressors reduce friction losses, improving energy efficiency by approximately 15% compared to traditional designs. Selecting the right type depends on operational needs and energy cost considerations.
Multi-stage heat exchangers and vapor recycling loops maximize latent heat utilization. Optimizing flow paths and temperature gradients reduces energy waste. Heat recovery is crucial for high-efficiency operations, particularly in large-scale evaporation.
Feature | Description | Benefit |
Multi-stage heat exchanger | Transfers heat in multiple steps | Reduces energy loss |
Vapor recycling loop | Redirects vapor back to evaporator | Improves efficiency by up to 90% |
Optimized flow path | Minimizes pressure drops | Enhances throughput |
Automated control systems monitor key parameters in real-time, adjusting flows and compressor speed to maintain optimal performance. These systems reduce human error, prevent overheating, and enable predictive maintenance. SCADA integration allows centralized monitoring of multiple units, improving overall plant efficiency.
Fouling reduces heat transfer efficiency, increasing energy consumption. Design features such as smooth surface heat exchangers, proper flow rates, and clean-in-place (CIP) systems help mitigate scaling. Proactive design reduces maintenance downtime and ensures consistent performance.
MVR evaporators use electricity to power mechanical compressors, while TVR relies on high-pressure steam. MVR achieves 70–90% energy savings, compared to 30–50% with TVR. Although MVR has higher initial investment costs, the long-term savings and smaller footprint often justify the choice. TVR may be preferable where steam is abundant and electricity is costly.
Falling film evaporators suit low to medium viscosity fluids, providing high heat transfer and gentle processing. Forced circulation is ideal for viscous fluids, reducing fouling risk at the cost of higher energy consumption. Choosing the correct design depends on product characteristics and operational flexibility.
Multiple-effect evaporators (MEE) are beneficial when moderate energy savings suffice. Hybrid MVR-MEE systems can combine high throughput with energy efficiency. Understanding process requirements is essential to selecting the optimal configuration.
MVR evaporators concentrate juices, milk, whey, and other liquids while preserving flavor, color, and nutrients. Their gentle heat application ensures high-quality end products. Many dairy plants report energy savings of over 70%, lowering production costs significantly.
In chemical production, MVR systems recover solvents and active ingredients efficiently. Pharmaceutical industries use MVR to concentrate formulations without thermal degradation, maintaining purity and consistency. Operational reliability and energy savings are especially valuable here.
MVR technology is instrumental in zero liquid discharge (ZLD) systems, reducing effluent volumes and recovering valuable by-products like phosphorus and nitrogen. Environmental regulations demand efficient treatment, making MVR systems increasingly relevant for industrial wastewater management.
MVR evaporators are finding applications in lithium, nickel, and cobalt extraction, as well as bio-fermentation. High-volume operations benefit from energy efficiency, scalability, and compact system designs.
Although MVR systems require higher initial investment compared to conventional evaporators, the long-term energy savings and lower operating expenses often result in a rapid payback period. Accurate ROI estimation involves analyzing production volume, local energy costs, and anticipated efficiency gains. For most industrial applications, the long-term operational and environmental benefits justify the upfront expenditure, making MVR a financially sound choice.
A stable and reliable electricity supply is essential for optimal MVR operation. Integrating renewable energy sources such as solar panels or wind turbines can further reduce operational costs and enhance sustainability. Compared to steam-based alternatives, MVR offers greater flexibility in energy management, allowing facilities to optimize electricity usage, lower utility bills, and adapt to fluctuating energy market conditions.
Designing MVR evaporators with modular configurations allows for easy system expansion as production demands increase. Modular designs simplify maintenance, facilitate rapid component replacement, and ensure continuous operation without major downtime. This flexibility supports long-term adaptability, enabling facilities to scale production efficiently while minimizing disruption and maximizing return on investment.
MVR systems operate under high-pressure vapor conditions, which necessitate robust safety protocols. Proper design should include emergency shutdown mechanisms, pressure relief valves, automated monitoring systems, and operator training programs. Implementing these risk management measures protects both personnel and equipment, ensuring safe and reliable operation while minimizing potential downtime and costly accidents.
Continuous monitoring of critical parameters, including temperature, pressure, and flow rate, enables real-time process optimization and enhances system efficiency. Predictive maintenance tools help detect early signs of wear or malfunction, preventing costly failures. Data-driven process control ensures consistent product quality, maximizes uptime, and supports efficient resource management, improving both operational and energy performance.
Enhancing thermal efficiency involves reducing energy loss in compressors, heat exchangers, and piping systems. Optimizing flow paths, minimizing pressure drops, and balancing temperature gradients improve heat transfer performance. Regular evaluation of thermal performance and fine-tuning operational parameters are essential for cost-effective operation, reducing energy consumption and prolonging equipment lifespan.
MVR systems contribute significantly to environmental sustainability by lowering energy consumption and reducing CO2 emissions. Closed-loop water designs conserve resources and comply with modern environmental regulations. Adopting MVR technology aligns with corporate sustainability goals, supports regulatory compliance, and demonstrates a commitment to eco-friendly industrial practices, making it a preferred solution in green manufacturing initiatives.
Routine inspection, preventive cleaning, and monitoring of critical components minimize fouling, scaling, and corrosion. Employing corrosion-resistant materials and Clean-In-Place (CIP) systems further reduces maintenance requirements and downtime. Establishing a structured maintenance schedule ensures optimal efficiency, prolongs equipment lifespan, and maintains reliable energy performance, safeguarding both production continuity and operational cost-effectiveness.
MVR evaporators combine energy savings with reliable operation. ZheJiang VNOR Environmental Protection Technology Co., Ltd. offers advanced MVR systems that maintain product quality and reduce costs. Their modular, automated designs ensure efficiency and sustainability, providing high value for industrial applications.
A: An MVR evaporator uses mechanical vapor recompression to recycle vapor as a heat source. Following MVR evaporator design guidelines, it reduces energy consumption while preserving product quality.
A: Design considerations for MVR evaporators include selecting the right compressor, heat exchanger efficiency, material choice, system capacity, and modular layout to ensure long-term performance.
A: Optimizing MVR evaporator performance involves monitoring temperature and pressure, maintaining clean heat exchangers, and integrating automation for real-time control and predictive maintenance.
A: MVR systems offer up to 90% energy savings, smaller footprint, and gentle processing of heat-sensitive products, making them more efficient than TVR or multi-effect systems.
A: Costs depend on system capacity, compressor type, material selection, and automation features. High initial investment is offset by long-term energy savings.
A: Proper integration ensures compatibility with upstream and downstream equipment, smooth commissioning, and alignment with plant production demands, following MVR evaporator system configuration principles.
A: Regular inspection, CIP systems, optimized flow rates, and corrosion-resistant materials help maintain heat transfer efficiency and reduce maintenance downtime.
A: Yes, careful MVR evaporator design guidelines ensure gentle temperature control for sensitive liquids and provide appropriate circulation for viscous fluids.
A: Automation and SCADA integration allow real-time monitoring, predictive maintenance, and optimal control of flow and compressor speed to maintain efficiency and safety.
