As industries globally strive for zero liquid discharge, water recycling, and efficient resource recovery, selecting the right technology for wastewater concentration, salt recovery, and product crystallization is critical. Among various technologies, Multi-effect Evaporation & Crystallization stands out for its energy efficiency, scalability, and stability across industries such as chemicals, pharmaceuticals, lithium battery, and high-salinity wastewater treatment.
ZheJiang VNOR Environmental Protection Technology Co., Ltd., a professional manufacturer and engineering company, focuses on designing, manufacturing, and installing Multi-effect Evaporation & Crystallization systems tailored for high-efficiency water and resource recovery, supporting clients in achieving lower operational costs and sustainable compliance. This in-depth article compares Multi-effect Evaporation & Crystallization with other evaporation and concentration technologies, using technical analysis, trends, and parameter-based comparisons, to help industries select the best solution for their operational, economic, and environmental goals.

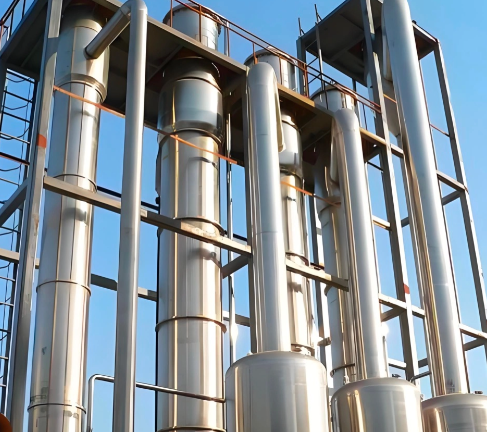

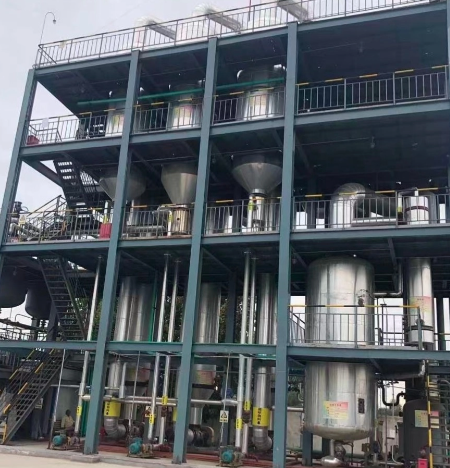

Multi-effect Evaporation & Crystallization integrates multiple evaporation stages operating under progressively lower pressures and temperatures, using the vapor produced in one effect to heat the next, significantly reducing steam consumption. As the feed solution becomes concentrated, it reaches supersaturation, enabling crystal formation and efficient recovery of salts or valuable products.
The Multi-effect Evaporation & Crystallization process enables:
High-efficiency liquid concentration.
Recovery of pure salts and minerals.
High water recovery rates for reuse.
Lower steam and energy consumption compared to single-effect evaporation.
Support for zero liquid discharge compliance.
| Parameter | Multi-effect Evaporation & Crystallization | Single-effect Evaporation | Mechanical Vapor Recompression | Reverse Osmosis | Forward Osmosis |
|---|---|---|---|---|---|
| Steam Consumption | 0.2–0.4 t steam/t water evaporated | 1.0–1.2 t steam/t water evaporated | 0.05–0.1 t steam/t water evaporated | None | None |
| Electricity Consumption | Moderate | Low | High | Moderate | Low |
| Operating Pressure | Low to medium | Medium | Low | High | Low |
| Product Recovery (Salts/Minerals) | High (crystallization) | Low | Moderate | Low | Low |
| Water Recovery | 92–95% | 80–85% | 90–95% | 70–90% | 70–85% |
| Suitability for High Salinity | Excellent | Good | Excellent | Limited | Limited |
| Energy Efficiency | High | Low | Very High | High | Moderate |
| Maintenance Needs | Moderate | Low | Moderate | High (membrane fouling) | High (membrane fouling) |
| Investment Cost | Moderate | Low | High | Moderate | High |
| Operation Complexity | Moderate | Low | High | Moderate | High |
| Zero Liquid Discharge Potential | Excellent | Limited | Excellent | Limited | Limited |
Single-effect evaporation is a straightforward process that uses steam to heat and evaporate water in a single stage. While this method is simple and easy to operate, it results in high steam consumption and low energy efficiency, making it less suitable for large-scale or energy-sensitive applications.
Reduced Steam Consumption: Multi-effect Evaporation & Crystallization uses vapor from one effect to heat the next, significantly reducing steam consumption by 60–80%. This cascading reuse of energy makes it highly efficient compared to single-effect systems.
Effective Crystallization and Salt Recovery: This technology provides the ability to crystallize and recover salts effectively, which is crucial for industries aiming to recover valuable resources from their wastewater.
Lower Operational Costs and Environmental Impact: By reducing steam consumption, Multi-effect Evaporation & Crystallization also reduces operational costs and the overall environmental footprint of the process.
Multi-effect Evaporation & Crystallization is particularly advantageous when industries require cost-effective concentration of high-salinity wastewater or product crystallization with lower steam requirements. It is ideal for applications where energy efficiency and resource recovery are key considerations.
Mechanical Vapor Recompression (MVR) compresses the vapor generated during evaporation, raising its temperature to reuse it as a heating medium. This technology offers the lowest steam consumption but requires a high electricity input, making it more suitable for applications where electricity is abundant and inexpensive.
Lower Electricity Consumption: Compared to MVR, Multi-effect Evaporation & Crystallization has lower electricity consumption, making it more energy-efficient in scenarios where electricity costs are high.
Simplified Operation and Maintenance: Multi-effect systems are generally easier to operate and maintain, especially for medium-capacity applications. This simplicity reduces the need for specialized maintenance and operational expertise.
Lower Investment Cost: The initial investment cost for Multi-effect Evaporation & Crystallization systems is typically lower than that for MVR systems, making it a more accessible option for many industries.
Multi-effect Evaporation & Crystallization is best used when industries require energy-efficient evaporation with lower electricity dependence, while also needing crystallization capabilities. It is particularly suitable for applications where the balance between energy efficiency and operational simplicity is critical.
Reverse Osmosis (RO) uses semi-permeable membranes to filter and concentrate solutions under high pressure. While RO is highly effective for many applications, it has limitations when dealing with high-salinity and high-organic-load wastewater.
Handling High-Salinity and Complex Wastewater: Multi-effect Evaporation & Crystallization can handle high-salinity and high-organic-load wastewater, where Reverse Osmosis would fail due to osmotic pressure and fouling. This makes it a more robust solution for challenging feed streams.
Crystallization and Salt Recovery: Unlike RO, which primarily focuses on water recovery, Multi-effect Evaporation & Crystallization enables the crystallization and recovery of salts, providing additional value from waste streams.
Higher Concentration Factors for Zero Liquid Discharge (ZLD): Multi-effect systems achieve higher concentration factors, making them ideal for ZLD applications where maximum water recovery and minimal waste are required.
Multi-effect Evaporation & Crystallization is best used for high-salinity wastewater and when salt recovery is required. It can complement or replace Reverse Osmosis in ZLD systems, providing a more comprehensive solution for wastewater treatment and resource recovery.
Forward Osmosis (FO) leverages osmotic pressure gradients for water separation but requires additional draw solution recovery steps. While FO has its advantages, it also comes with complexities in operation and maintenance.
Higher Water Recovery and Concentration Factors: Multi-effect Evaporation & Crystallization achieves higher water recovery and concentration factors compared to Forward Osmosis, making it more effective for high-salinity wastewater.
Simplified Process: Unlike FO, which requires complex draw solution recovery steps, Multi-effect Evaporation & Crystallization is a more straightforward process with fewer operational complexities.
Direct Crystallization of Salts: Multi-effect systems can directly crystallize salts for resource recovery, providing a more integrated solution for both concentration and crystallization.
Multi-effect Evaporation & Crystallization is best used when industrial wastewater has high salinity or complex compositions, requiring a reliable, single-step solution for concentration and crystallization. It is particularly suitable for applications where operational simplicity and high efficiency are critical.
The wastewater is highly saline or complex. This technology is particularly effective for treating wastewater with high concentrations of salts or complex chemical compositions that other methods may struggle to handle efficiently.
Salt or valuable mineral recovery is desired. Multi-effect Evaporation & Crystallization enables the effective crystallization and recovery of salts and other valuable minerals from the wastewater, providing an opportunity for resource reuse and additional revenue streams.
Zero Liquid Discharge compliance is required. Industries aiming to achieve Zero Liquid Discharge (ZLD) can benefit from this technology due to its high water recovery rates and ability to concentrate and crystallize waste, minimizing liquid waste output.
High concentration factors are needed. When processes require significant reduction in wastewater volume or high levels of concentration for specific applications, Multi-effect Evaporation & Crystallization offers the necessary efficiency and effectiveness.
A balance of energy efficiency and crystallization capability is critical. For operations where both energy consumption and crystallization performance are key considerations, Multi-effect Evaporation & Crystallization provides a balanced solution, optimizing energy use while delivering robust crystallization results.
A: Multi-effect Evaporation & Crystallization is a process that integrates multiple evaporation stages operating under progressively lower pressures and temperatures. It uses the vapor produced in one stage to heat the next, significantly reducing steam consumption. This process is highly efficient for concentrating solutions and recovering salts or valuable products from wastewater.
A: This technology is crucial for industries aiming to achieve zero liquid discharge (ZLD), water recycling, and efficient resource recovery. It offers high-efficiency liquid concentration, supports sustainable manufacturing, and lowers operational energy consumption, making it a cost-effective and environmentally friendly solution.
A: Multi-effect Evaporation & Crystallization is more energy-efficient, reducing steam consumption by 60–80% compared to Single-effect Evaporation. It also enables effective crystallization and salt recovery, which are not possible with Single-effect systems. This makes it ideal for applications requiring high concentration and resource recovery.
A: Multi-effect Evaporation & Crystallization has lower electricity consumption and is easier to operate and maintain, especially for medium-capacity applications. It also has a lower initial investment cost compared to MVR systems, making it more accessible for many industries.
A: Multi-effect Evaporation & Crystallization can handle high-salinity and high-organic-load wastewater, where Reverse Osmosis may fail due to osmotic pressure and fouling. It also enables crystallization and salt recovery, which RO cannot achieve, and achieves higher concentration factors for zero liquid discharge (ZLD).
Multi-effect Evaporation & Crystallization offers a powerful, scalable, and energy-efficient solution for industrial concentration, crystallization, and wastewater treatment challenges compared to other technologies like Single-effect Evaporation, Mechanical Vapor Recompression, Reverse Osmosis, and Forward Osmosis. If your facility is seeking to enhance resource recovery, lower energy costs, and achieve stable zero liquid discharge using Multi-effect Evaporation & Crystallization, contact ZheJiang VNOR Environmental Protection Technology Co., Ltd. today to explore tailored engineering solutions for your operational needs.
